Stahl Electric Wirerope Hoist

Hoist

Reliable and safe hoists from STAHL Crane Systems

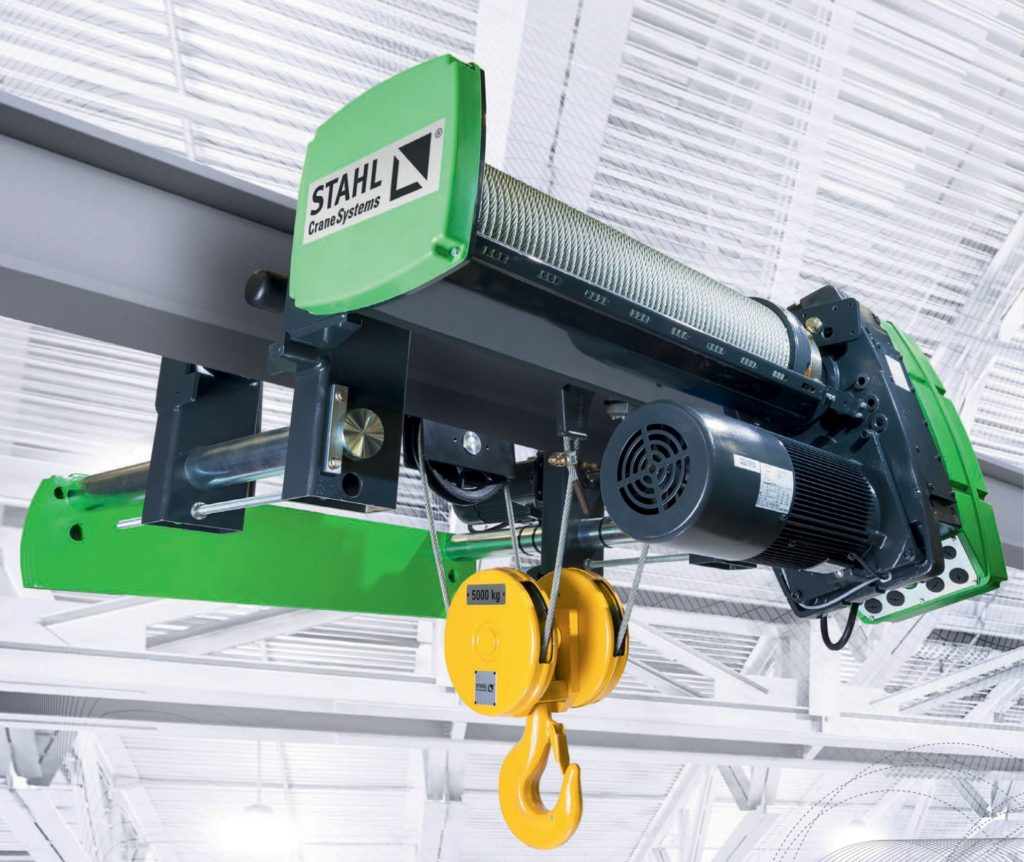

STAHL Electric Wire Rope Hoists

The SH wire rope hoist programme is used around the world in many different applications. Compact, strong, particularly maintenance-friendly and an ideal when it comes to combining quality, flexibility and performance.

The module system enables almost unlimited combinations of the components. Coming in five sizes with 26 S.W.L. variants, the SH series covers the safe working load range from 500 kg to 25,000 kg. The new SH 6080 wire rope hoist extends the versatile SH wire rope hoist range to safe working loads up to 32,000 kg.

The wire rope hoists can be used in stationary applications or together with trolleys in standard cranes, off-standard cranes or systems building.

Features and Benefits

5 sizes, 26 S.W.L. variants

Stationary version or various trolleys for cranes and systems building

Largely maintenance-free, low wear, long service life according to FEM/ISO standards

Standard series with two lifting and two travel speeds

Particularly soft starting and braking

Standard series with high-quality safety components for improved work safety

Optionally available in explosion-proof design according to ATEX and IECEx

The particularly gentle starting behaviour of the SH wire rope hoist enables the safe transport of bulky loads. The SH wire rope hoist can also be used without any problems under difficult conditions, because the compact dimensions due to the U-shape offer countless possible combinations.

Additional equipment, such as special controls or safety distancing, enable individual customer solutions. Special coatings make it possible to use the SH wire rope hoist outdoors or under corrosive environmental conditions.

Cantilevered special crane with SH cable hoist for Stone Gallery. Wire rope hoists can be painted in all RAL colours according to customer requirements.
